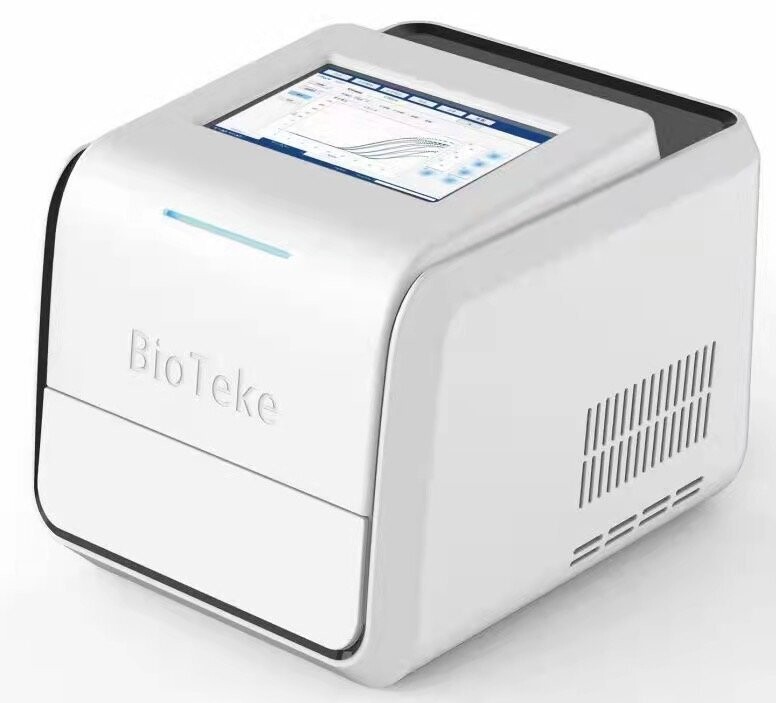

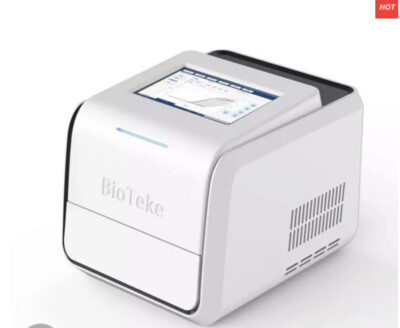

Bioteke Fast real-time fluorescence PCR analyzer (BTK-8) upgrade on traditional fluorescent quantitative PCR instrument, which not only retains the advantage of high detection sensitivity but also overcomes the disadvantage of time-consuming reaction. In this way, one-round reaction time can be shortened from 1.5 hours to 20~30min, which greatly saves time.

It's Windows Touch-Screen Operating System edits and runs programs by itself Instead of connecting to the computer. It can directly connect to the printer to print the report.

BTK-8 Ultrafast Real-time PCR System is available with 4-color fluorescence channels, the temperature-dependent fluorescence optical system can acquire all channels simultaneously.

Product Qualification

IVD Notification Certificate/ E.A.R. Certificate/ Notify body: 2853/ FDA Registration/ Belgium Registration/ Australian Register of Therapeutic Goods Certificate/ Peru Registration exempt/ Italy Registration/ Instrument Test Report/ ISO 13485 Certificate/ ISO 9001 Certificate/ ISO 45001 Certificate/ ISO 14001 Certificate/ IPMS Certificate/ Verified Supplier Certificate

Advantages & Features

1.4-color fluorescence channels

FAM /VIC /ROX /Cy5 included

2. Multiplex Test

Adopting an 8-hole chip,8 samples and multi-target genes can be detected simultaneously.

3. Simple and rapid

The ultra-fast temperature rise and fall rate of 8～ 12℃ ／s can shorten the PCR experiment from 1.5 hours to only 20～ 30 minutes.

4. Micro-reaction system

Only a 10µL reaction system is needed, reducing reagent cost.

5. High sensitivity

Adopting microfluidic technology, each reaction pore is relatively independent and has no cross-interference. As a result, the detection system has high sensitivity and can achieve the same sensitivity as ABI Q6.

6. Portable and durable

Fast real-time fluorescence PCR analyzer weighs 8kg, which is so light and compact that can be carried to site and field in suitcases. More-

over, it can also be equipped with a vehicle charging or storage battery and full power of it can run 1 0～ 12 rounds of PCR programs a day.
